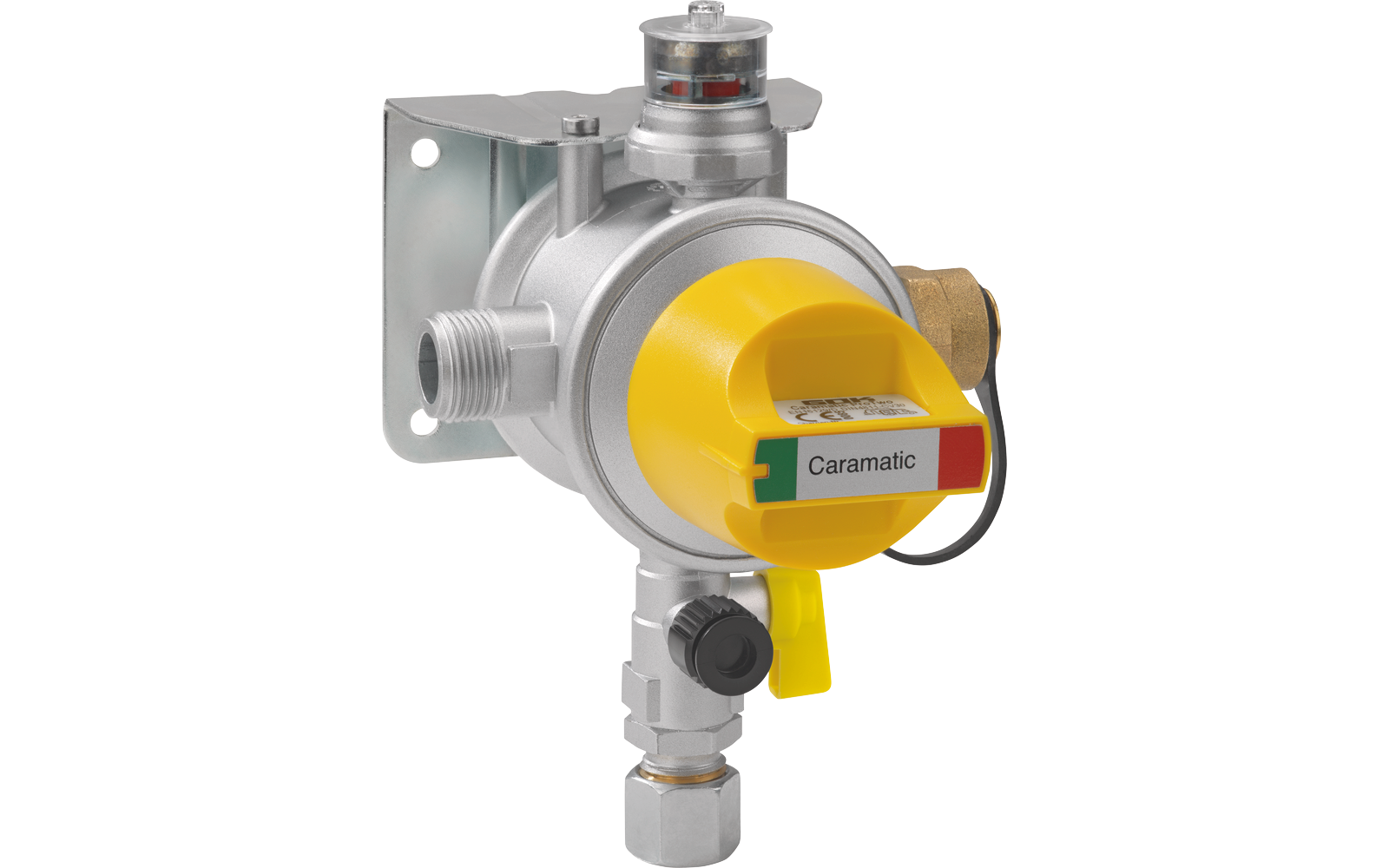

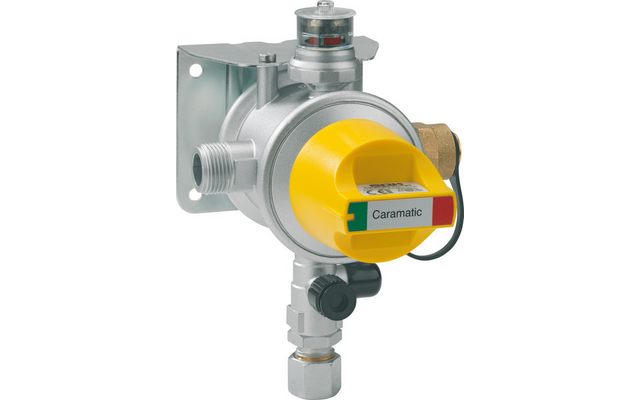

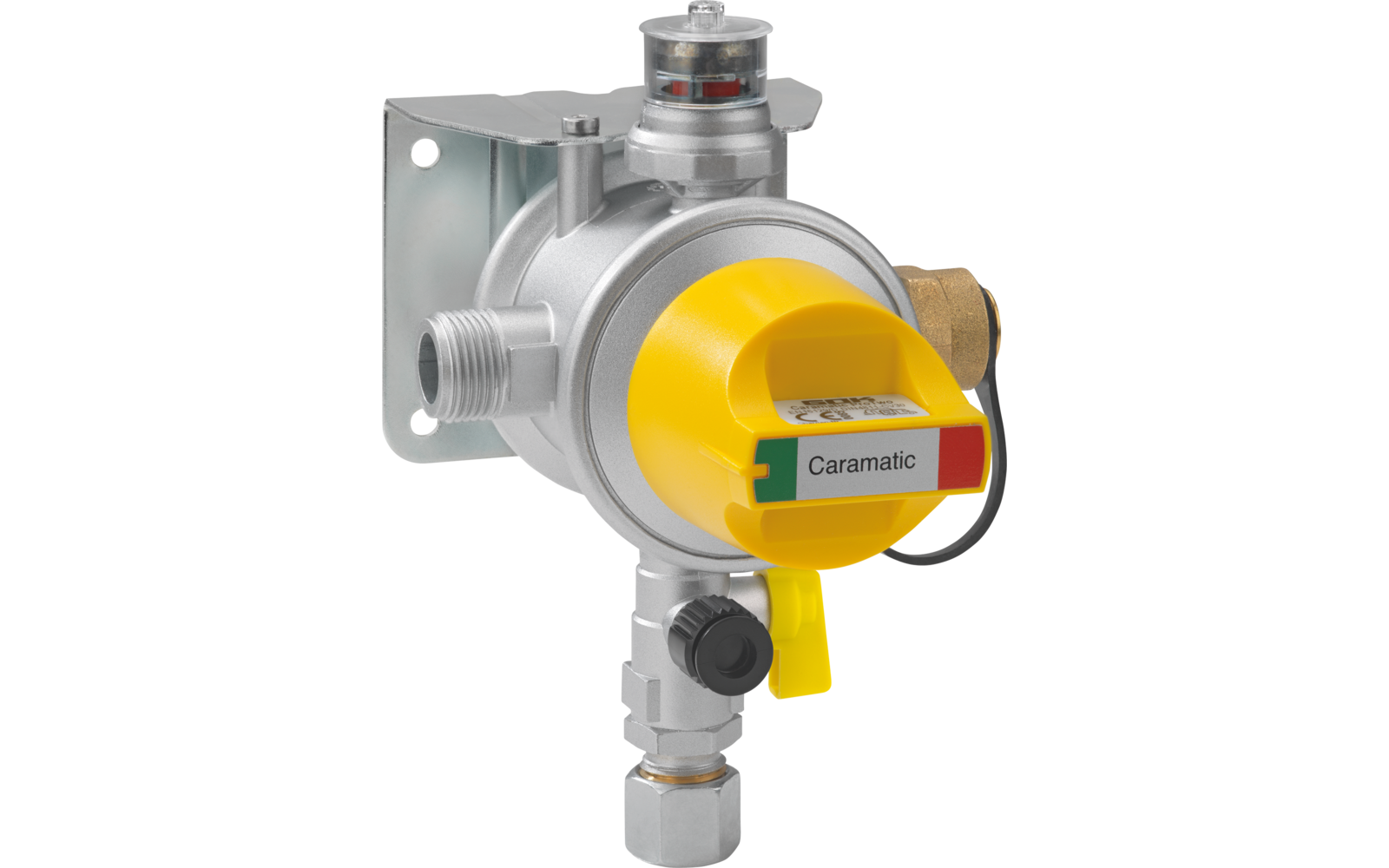

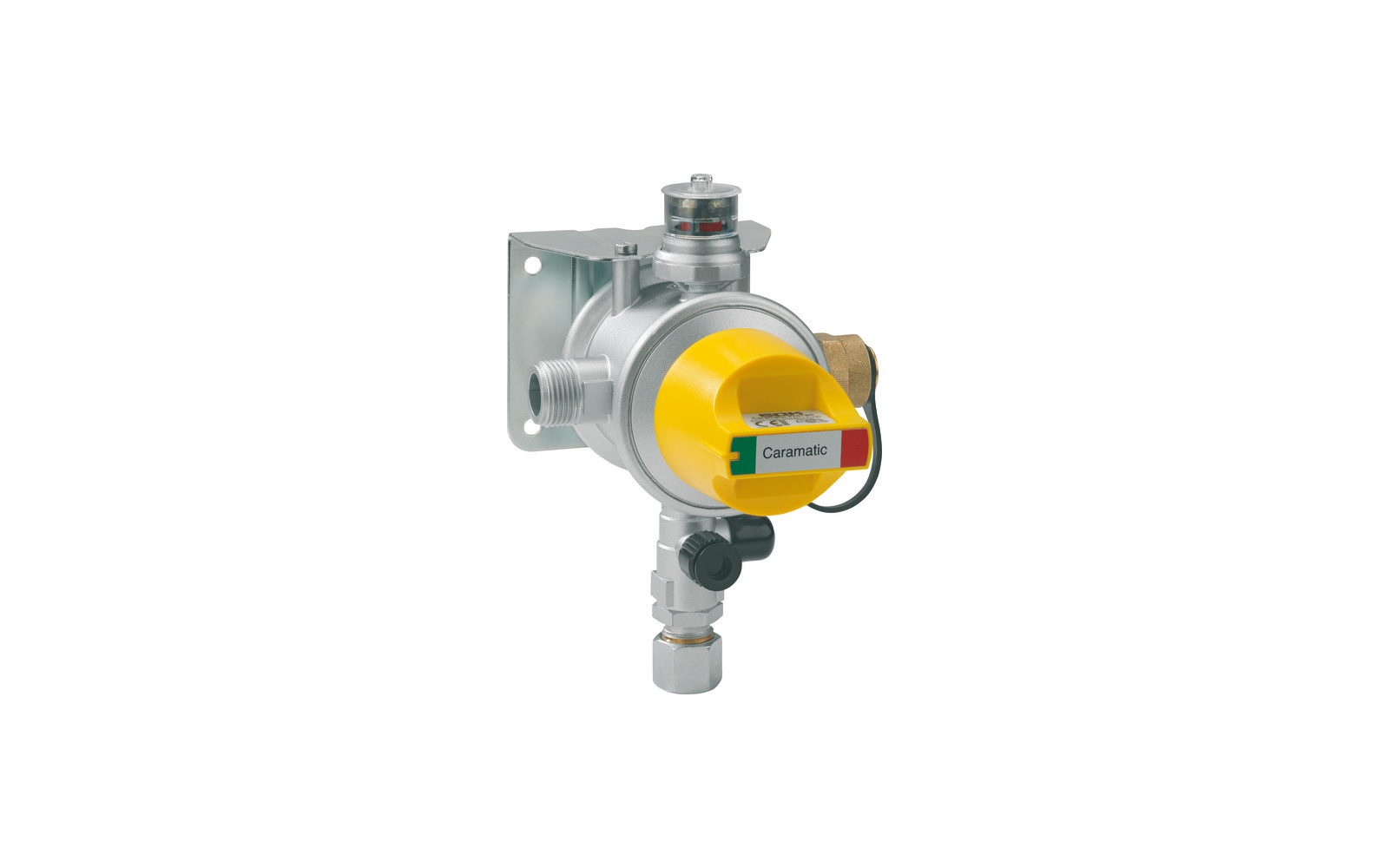

GOK Caramatic ProTwo Changeover Valve

Caramatic ProTwo PS 16 bar

Automatic change-over valve with integrated low-pressure regulator for the two-cylinder system, for connection to gas cylinders by means of high-pressure hose line, for pressure regulation to the nominal pressure of the gas appliance consisting of:

Automatic changeover valve, low pressure regulator with safety relief valve PRV, control knob, operating and reserve indicator, gas return protection, test device and wall bracket

Advantages and equipment

• automatic switch-over to the gas cylinder on the reserve side as soon as the gas cylinder on the operating side is empty
• a bottle change is possible without interrupting operation
• Gas non-return valve: prevents the gas flow from penetrating when changing cylinders
• uniform gas supply due to optimal utilization of the gas cylinder contents
• Display from which gas cylinder is taken
• europe-wide use through the use of country-specific high-pressure hose lines (not included in the scope of delivery)
• Testing device for leak testing of the liquid gas installation without dismantling the pressure regulating device
• Version with outlet connection RVS 10 / 8 is equipped as standard with a transition piece for connection to 8 mm pipes
• 2 x AG M20 x 1.5 x RVS

Conformity

• EC type examination according to GAR

Note

• Can be used without restrictions for old vehicles!
• To protect the liquid gas system in the vehicle from oily aerosols and exhaust vapour residues, the use of a Caramatic ConnectClean is recommended!
