Low Pressure Regulator 0.8 kgLow Pressure Regulator 1.2 kgLow Pressure Regulator 1.5 kgLow Pressure Regulator 1.2 kg with Pressure GaugeLow Pressure Regulator 0.8 kg, 90 degrees
Product details
Flow rate up to 1.5 kg/h | Output pressure 30 mbar |
pressure control to the nominal pressure of the gas appliance | with safety device against overpressure |
Product description

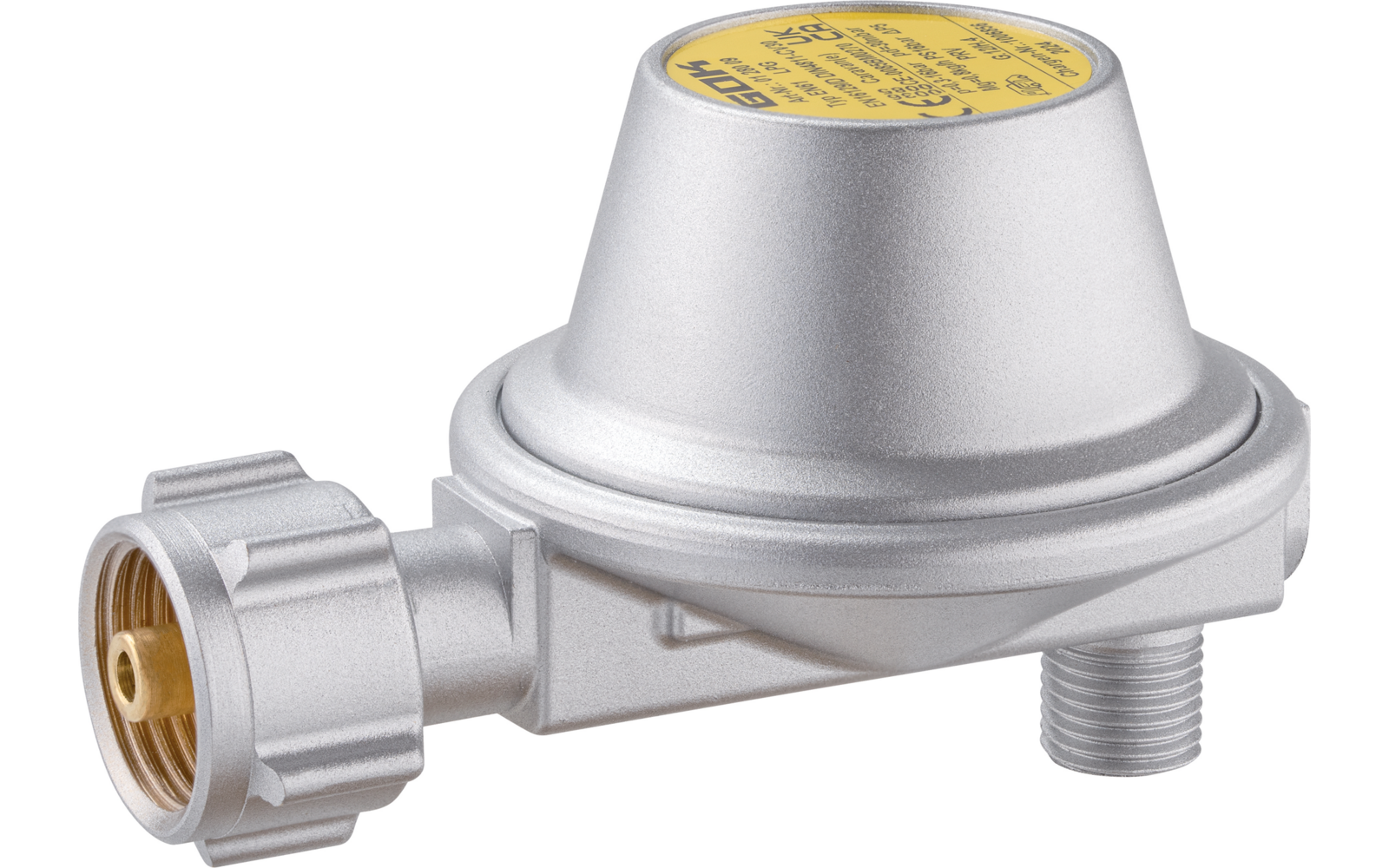

As a special regulator with overpressure safety device. This complies with the requirements of the employers' liability insurance association and is also suitable for use in commercial vehicles. Low pressure regulator for connection to gas cylinders, for pressure regulation to the nominal pressure of the gas appliance. Consisting of: Low pressure regulator with integrated safety device against overpressure. In accordance with the latest European standard DIN EN 16129 for special use in caravans and motorhomes. Suitable for German gas cylinders.
Available in three different performance levels (Note: The performance level must be selected after adding up all nominal appliance flow rates):
- Output level 1: 0.8 kg/h
- Output level 2: 1.2 kg/h
- Output level 3: 1.5 kg/h
Also available with straight or 90° outlet and with or without pressure gauge.
Details- Outlet pressure: 30 mbar
- Maximum permissible pressure: PS 16 bar
- Inlet pressure range 0.3 - 16 bar.
- With integrated safety device against overpressure
- Response pressure of the safety settings already at 100 mbar
- Connection A: KLF
- Connection B: G 1/4 LH-KN
- Suitable for German gas cylinders
- Version with pressure gauge for leak testing, e.g. when changing cylinders.
- Version with extended inlet connection, 90° outlet suitable for VW buses with Westfalia extension.
- Metallic inner parts made of stainless steel.
- With safety blow-off valve.
- The output level must be selected after adding up all nominal device flow rates.
- Model 165540 with overpressure safety device S2SR (ÜDS)
- The other variants with safety relief valve PRV
Features
Type of gas regulator, gas hose | Controller |
Design | no manometer |
Colour | silver |
Connection | 30 mbar |
Nominal flow | 0,8 kg/h |
ean | 4045659483923 |
Manufacturer Article No. | 61-280-00 |
Features
Type of gas regulator, gas hose | Controller |
Design | no manometer |
Colour | silver |
Connection | 30 mbar |
Nominal flow | 1,2 kg/h |
ean | 4045659483930 |
Manufacturer Article No. | 61-285-00 |
Features
Type of gas regulator, gas hose | Controller |
Design | no manometer |
Colour | silver |
Connection | 30 mbar |
Nominal flow | 1,5 kg/h |
ean | 4045659488218 |
Manufacturer Article No. | 61-290-05 |
Features
Type of gas regulator, gas hose | Controller |
Design | with manometer |
Colour | orange |
Connection | 30 mbar |
Nominal flow | 1,2 kg/h |
ean | 4045659485163 |
Manufacturer Article No. | 61-285-02 |
Features
Type of gas regulator, gas hose | Controller |
Design | with 90° outflow |
Colour | orange |
Connection | 30 mbar |
Nominal flow | 0,8 kg/h |
ean | 4045659488065 |
Manufacturer Article No. | 61-280-15 |
