Product details
Safety gas pressure control system | for the operation of single-bottle systems |
with new pendulum solution |
Product description

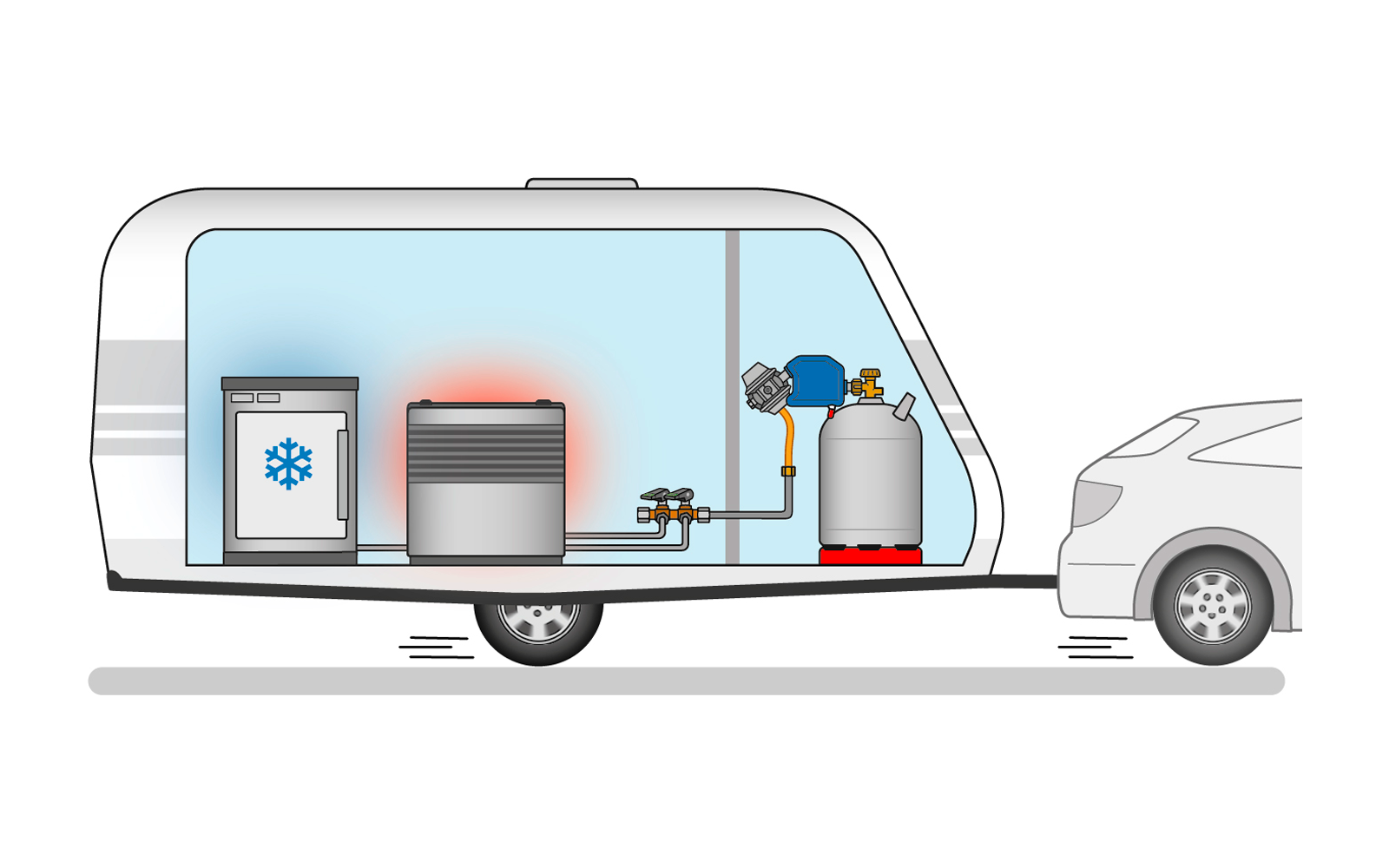

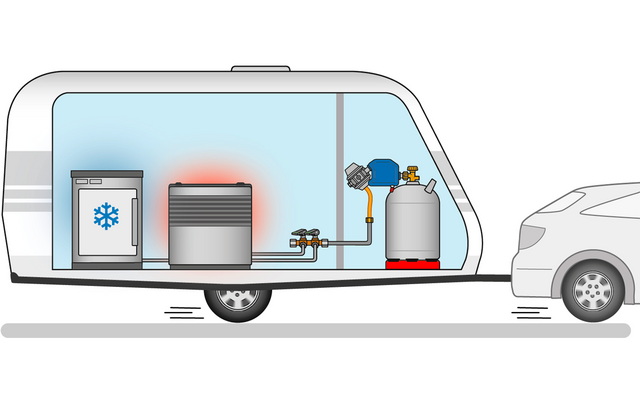

Safety gas pressure regulation system for operating single-cylinder systems in motorhomes and caravans while driving, for direct connection to the gas cylinder, consisting of:
mechanical crash sensor with new pendulum solution, low-pressure regulator with S2SR overpressure safety device (ÜDS), hose line and regulator brackets.
Advantages and features:
- Gas supply while driving thanks to integrated mechanical crash sensor with new pendulum solution, which shuts off the gas flow in the event of an accident.
- Advantages of the crash sensor with new pendulum solution:
faster and simpler commissioning and reset after response
more precise operation and therefore fewer malfunctions due to incorrect response behavior
commissioning possible without any problems, even if the recreational vehicle is in an inclined position
- simple retrofitting as the regulator does not need to be wall-mounted; it is fitted directly to the gas cylinder
- little space required for installation in the gas cylinder box
- Gas cylinder can also remain permanently open while driving
- greater safety, as the gas supply is interrupted directly at the gas cylinder in the event of an accident
- Medium-pressure hose (rubber with textile insert; cold-resistant to -30°C; hose dimensions 6.3 x 3.5 mm) G 1/4 LH-ÜM x RVS 10x450 mm for connecting the system to the vehicle's supply line
- RVS 10/8 outlet connection is equipped as standard with a transition piece for connection to 8 mm pipes
- Brackets for safe storage of the regulator on the wall, e.g. when changing the gas cylinder
Conformity:
- Individual fittings with DIN-DVGW or DVGW type examination certificate or EU type examination certificate DGR
Technical data:
- Maximum permissible pressure: PS 16 bar
Features
Type of gas regulator, gas hose | Controller |
Design | Brit-POL connection |
Nominal flow | 30 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | KLF connection |
Nominal flow | 50 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | POL-WS Connection |
Nominal flow | 30 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | EU shell connection |
Nominal flow | 30 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | Shell-F connection |
Nominal flow | 30 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | Ital.A connection |
Nominal flow | 30 mbar |
Features
Type of gas regulator, gas hose | Controller |
Design | KLF connection |
Nominal flow | 30 mbar |
